FRP Strengthen Non-armored singlemode Outdoor Direct Burial/Aerial/duct 12/24/36/48/72/96/144 strand fiber optic cable

Brand Name : UNIFIBER-OEM

Model Number : GYFTY

Certification : ROHS,CE,UL

Place of Origin : CHINA

MOQ : 1KM

Payment Terms : L/C, T/T, Western Union

Price : Negotiable

Supply Ability : 100km/month

Delivery Time : 5-8days

Packaging Details : Wooden drum

Fiber count : 2--144core

Fiber types : G652D or as your need

Type : Non-armored fiber optic cable

Structure : loose tube stranded

Jacket : PE or as your need

Application : aerial,duct,underground

Contact Now

FRP Strengthen Non-armored singlemode Outdoor Direct Burial/Aerial/duct GYFTY 12/24/36/48/72/96/144 strand fiber optic cable

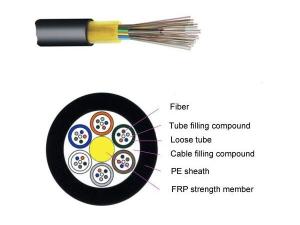

The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. The cable core is wrapped with the water blocking tape to protect it from water ingress, then the cable is completed with a PE sheath.

Features:

Non-metal strength member.
Filler protect loose tuber fiber.
Non-metal strength has an excellent anti-electromagnet ability.

Application:

Adopted to outdoor distribution.
Adopted to trunk power transmission system.
Access network and local network in high electromagnetic interfering places.

Parameters:

Structure details

No. of fiber 6F 12F 24F 36F 48F 72F 96F 144F
No. of tube 1 2 4 3 4 6 8 12
Fiber per tube 6 6 6 12 12 12 12 12
No. of filler rod 4 3 1 2 1 0 0 0
Tube diameter (±0.1mm) 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0
Thickness of loose tube
(±0.05mm)		 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3
Nom. out diameter (±0.2mm) 8.6 8.6 8.6 8.6 8.6 9.2 10.8 13.4
Nom. jacket thickness
(±0.1mm)		 1.6 1.6 1.6 1.6 1.6 1.6 1.7 1.7
Loose tube Material PBT Color Standard spectrum
Filler rod Material PP Color Black
Tube filling Material Filling compound
Central strength member Material FRP Diameter 1.4mm (6-48F)
2mm (72-144F)
Layer PE (for 96F -144F only)
Water blcoking system Material water blocking tape
Rip cord Type 1110*2
Out sheath Material MDPE Color Black

Mechanical and environment performance

Tensile strength Long term(N) 600N
Short term(N) 1500N
Crush load Long term (N/100mm) 300N/100mm
Short term (N/100mm) 1000N/100mm
Bending radius Dynamic (mm) 20D
Static (mm) 10D
Storage Temperature -20℃～+70℃
Installation Temperature -10℃～+60℃

Fiber Performance

Fiber style Unit SM G652D MM 50/125 MM 62.5/125
Condition mm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.36/0.22 ≤3.0/1.0 ≤3.0/1.0
Cladding diameter um 125±1 125±1 125±1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±7 242±7 242±7

Package

Packing material: Wooden drum.

Packing length: 2km per drum or customization.

FRP Strengthen Non-armored singlemode Outdoor Direct Burial/Aerial/duct 12/24/36/48/72/96/144 strand fiber optic cableFRP Strengthen Non-armored singlemode Outdoor Direct Burial/Aerial/duct 12/24/36/48/72/96/144 strand fiber optic cable
