GYTA Outdoor Aerial Duct 12/24/48/72 strand Loose Tube Aluminum Steel Tape Armored long distance fiber optic cable

Brand Name : UNIFIBER-OEM

Model Number : GYTA

Certification : ROHS,CE,UL

Place of Origin : CHINA

MOQ : 1KM

Payment Terms : L/C, T/T, Western Union

Packaging Details : Wooden drum

Price : Negotiable

Supply Ability : 1000km/month

Delivery Time : 5-8days

Structure : Stranded Loose Tube

Fiber : G652D Singlemode;50/125 Multimode

Armored : GYTA Aluminum Tape;GYTS Steel Tape

Jacket : PE sheath

Contact Now

GYTA Outdoor Aerial Duct 12/24/48/72 strand Loose Tube Aluminum Steel Tape Armored long distance fiber optic cable

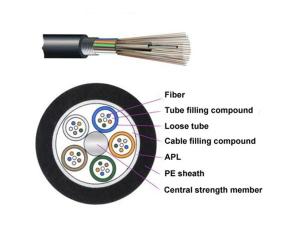

GYTA is a type of fiber optic cable in stranded loose tube fiber optic cable with compact structure, and the cable jacket is made of strong Polyethylene. High strength loose tube has hydrolysis resistant. Cable filling materials ensure high reliability, and APL makes the cable crush resistant and moisture proof. So, the GYTA has a very good watertight performance. This cable can be used for LAN and WAN backbones, telecom access lines, fibre to business and fibre to the building drop connections, as well as fibre to the home drop and access connections.

Application:
Rural communication
Computer networks system
Aerial & conduit/duct application
CATV
Local trunk line
Features:
Special tube filling compound ensure a critical protection of fiber.
PE sheath protects cable from ultraviolet radiation.
Crush resistance and flexibility
Good mechanical and temperature performance.
High strength loose tube that is hydrolysis resistant.
Steel wire used as the central strength member.
Loose tube filling compound and 100% cable core filling.

Parameters

NO. of fibers 6 12 24 48 72 96 144
No. of tubes 4 4 4 4 6 8 12
Filler Rod 4 3 1 1 0 0 0
Fibers per tube 6 6 6 12 12 12 12
Loose tube diameter (±0.1mm) 1.6 1.6 1.6 2.0 2.0 2.0 2.0
Thickness of loose tube
(±0.05mm)		 0.3 0.3 0.3 0.3 0.3 0.3 0.3
Out diameter (±0.5mm) 8.6 8.6 8.6 9.8 10.8 12.2 14.9
Thickness of out diamter
(±0.1mm)		 1.6 1.6 1.6 1.6 1.6 1.7 1.7
Loose tube Material PBT Color Standard spectrum
Filler rod Material PP Color Black
Central strength member Material Steel wire Diamter 1.4(6-48)
2.0(72-144)
Armor Material Aluminum tape
Water blcoking system Material Filling gel / Water blocking tape
Out sheath Material MDPE Color Black

Mechanical and environment performance

Tensile strength Long term(N) 600N
Short term(N) 1500N
Crush load Long term 300N/100mm
Short term 1000N/100mm
Bending radius Dynamic 20D
Static 10D
Installation Temperature -10℃～+60℃
Storage Temperature -40℃～+70℃

Fiber characteristics

Fiber type Unit SM G652D MM 50/125 MM 62.5/125
Condition mm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.36/0.24 ≤3.0/1.5 ≤3.0/1.5
Cladding diameter um 125±1 125±1 125±1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±7 242±7 242±7

Package

Packing material: Wooden drum.
Packing length: 2km per drum or customization.

GYTA Outdoor Aerial Duct 12/24/48/72 strand Loose Tube Aluminum Steel Tape Armored long distance fiber optic cable
